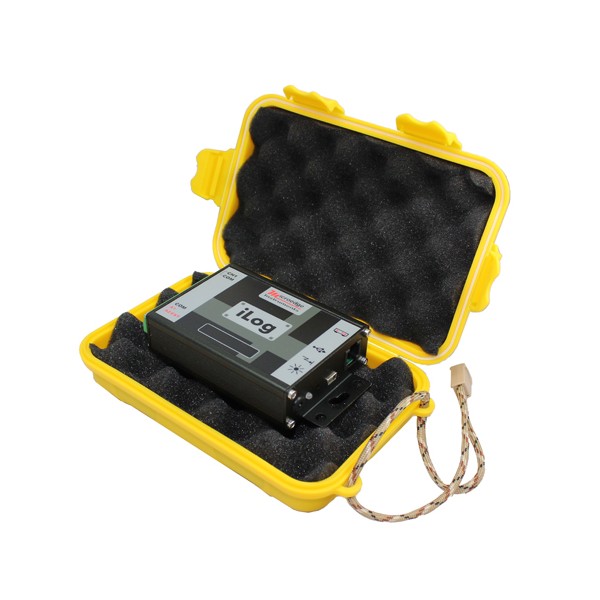

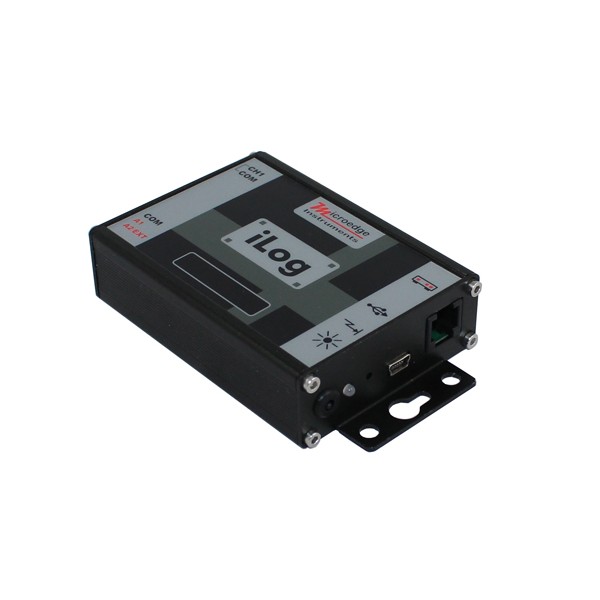

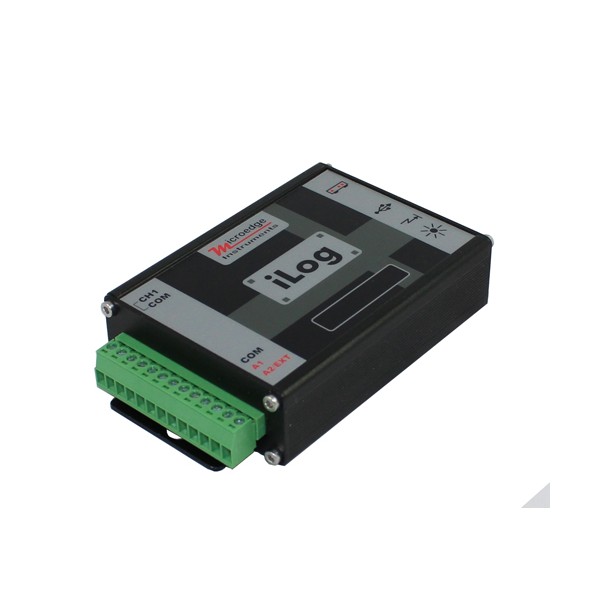

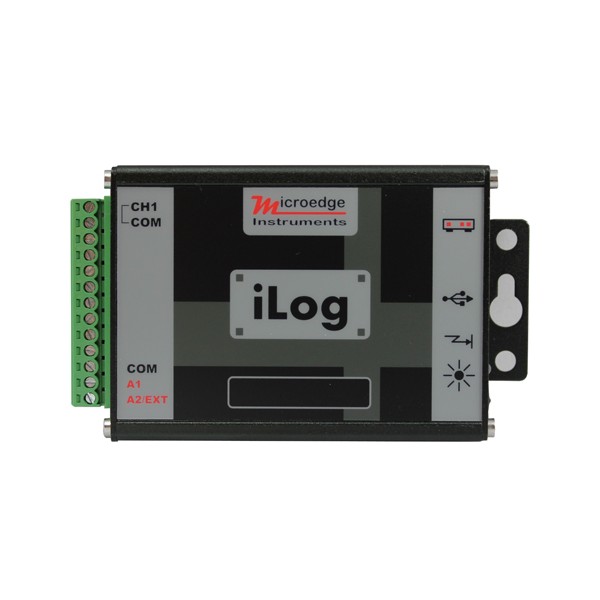

써머커플 데이터로거 요약정보 및 구매

MODEL : iTC-80

브랜드 MICROEDGE
판매가격 전화문의 (031-713-5988)
포인트 0점
배송정보 유료(주문시 결제)
점포택배 / 평균 7일 이내 도착(토,일,공휴일 제외)

견적 및 전화 문의

제품 정보

  • 16-bit analog-to-digital converter
  • 온도 보정
  • 4 메가바이트 메모리
  • 115,200bps 자동 보드 속도의 USB, 시리얼 인터페이스
  • 12년 이상의 배터리 수명
  • 구성, 기획, 다운로드, 분석 및 알람 레포트가 가능한 소프트웨어
  • 설정 가능한 알람 컨트롤/전자극 컨트롤
  • 폭넓은 샘플링 간경 선택 (20ms 12hrs)
  • 알루미늄 재질




· 제품 사양

[Inputs]

Input Connection: Pluggaable terminal block for one external channel, excitation controls and alarm outputs

Chanenls:

One on-board thermistor temperature (-40°C ~ 70°C,-40°F ~ 158°F)
One external 25mA channel.

Resolution: 0.0018%

Accuracy: ± 0.1% FSR @ 25°C

Load Resistor: 12 Ohms

Overcurrent Protection: Up to ± 100mA



[Alarms]

Channel Alarms: Two editable alarm thresholds

Alarm Output:

ALARM1 & A2/E terminal strips can be configured as alarm outputs
Alarm-On: MOSFET(N-Channel) switch on
Alarm-Off: MOSFET(N-Channel) switch off
Max Power: 200mA @ 24VDC
With purchase of SiteView software, Site-Log can report alarm status to host PC via USB, Modem or Ethernet Device Server.

Alarm-On Delay: programmable 0 - 10 minutes delay with 1-minute increment.

Alarm Indicator: On-board LED lights in red when in alarm condition.



[On-board Memory]

Size: 4 Megabytes (2MB readings)

Data Retention: Over 20 years



[Sampling]

Sampling Interval: 20 milliseconds to 12 hours user selectable (external power supply required if interval less than one second)

Logging Mode: Stop recording or FIFO when memory is full

Logging Activation: Programmable instant, start delay or field push button activation.



[Communications]

Interface:

USB (Mini-USB-B) (USB-A-mini USB-B Cable included)
AUX(RJ11) for direct TTL level communications

Baud Rate:

Auto-detect baud rate from 2400 to 115200 bps on both USB and AUX.



[Battery]

Power: Built-in 3.6V Lithium Battery.

Battery Life: 12 years based on 1 minute sampling interval.



[Software]

SiteView: (Sold separately)

Configuration, downloading, plotting, real-time view, custom calibration and custom equation.

Software Requirements:

Computer with 1.0 GHz or faster processor
256 MB Memory or higher
1.0 GB of available hard-drive space or higher
Windows XP with SP2 or later, Vista, Window 7
At least one USB port or one COM port.



[Physical]

Material: Aluminum enclosure.

Dimension: 88 X 64.2 X 24 mm (3.46 X 2.53 X 0.95 inches).

Weight: 200g

Mounting: Probe/wall-mount holes for hanging/mounting.



[Others]

LED Indicator

Tri-Color LED: (can be disabled for power saving)
Normal Sampling: green when sampling.
Alarm: red when sampling.
Low Battery: amber when sampling.

Excitation Control:

A2/E terminal strip can be configured as excitation control output for driving the power of connected devices.
Warm-up delay interval settings: 10 to 240 seconds with 10-second increment.

Operating Environment:

-40 ~ +70 °C (-40 °F ~ 158 °F), 0 ~ 95% RH non-condensing.

Clock Accuracy: ± 1 mintue per month.

Approvals: CE, FCC
