제품 정보

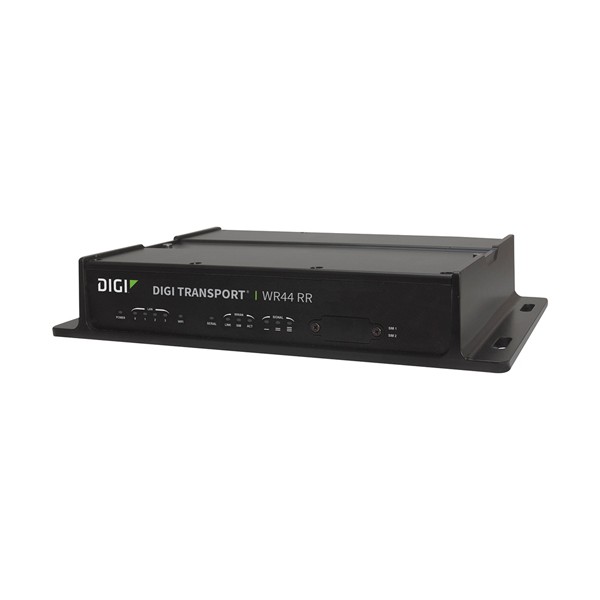

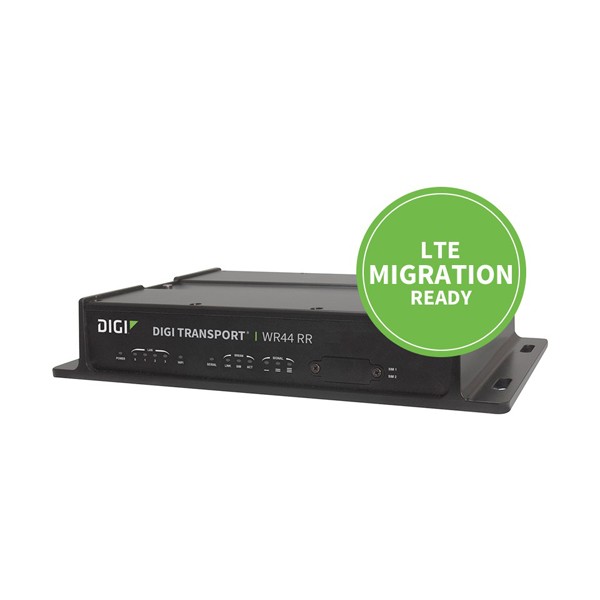

Digi WR44 RR

철도 차량용으로 설계된 3G/4G GPS가 장착된 견고한 올인원 셀룰러 라우터

> 충격 및 고진동 환경을 위해 설계된 고강도 인클로저 및 커넥터
> 엔터프라이즈급 라우팅, VPN 및 방화벽 기능
> 802.11 AC/b/g/n, a/n Wi-Fi 액세스 지점(옵션)
> 캐리어 이중화를 위한 듀얼 SIM
> 셀룰러에서 Wi-Fi로 자동 전환
> AAR S-9401 및 EN50155를 포함한 전체 열차 인증
> Digi Remote Manager®는 대규모 구성, 장치 관리 및 문제 해결 도구 제공

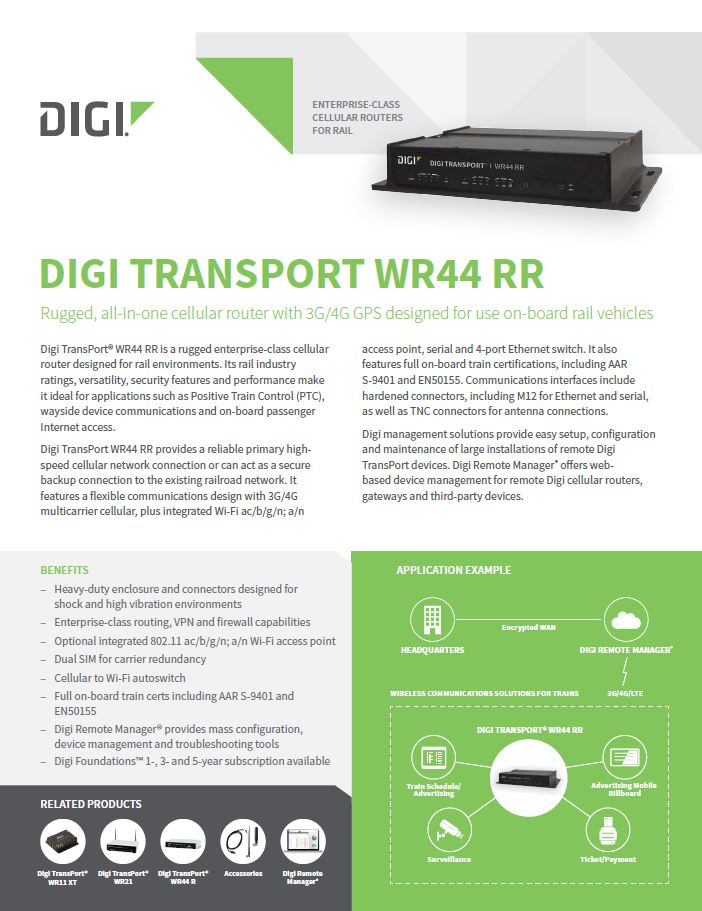

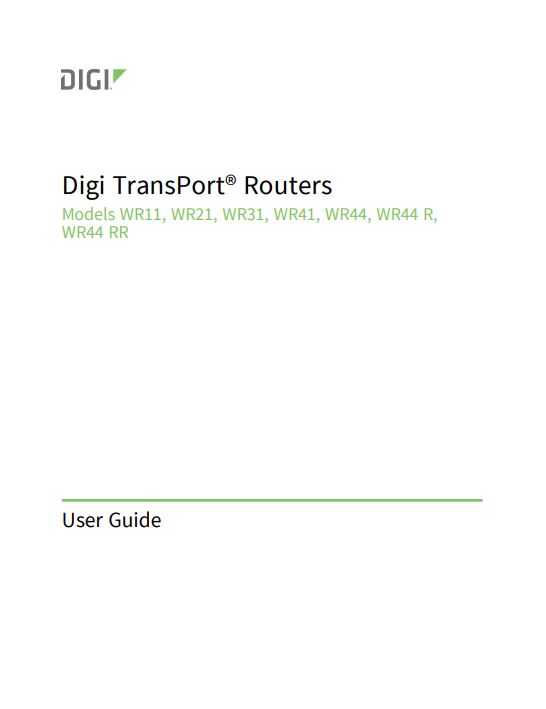

제품 자료 보러가기

Digi TransPort WR44 RR은 철도 환경을 위해 설계된 견고한 엔터프라이즈 급 셀룰러 라우터입니다. 철도 산업 등급, 다목적 성, 보안 기능 및 성능은 PAC (Positive Train Control), 길가의 장치 통신 및 기내 승객 인터넷 액세스와 같은 어플리케이션에 이상적입니다.

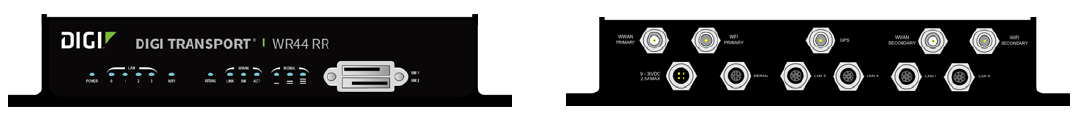

Digi TransPort WR44 RR은 안정적인 기본 고속 셀룰러 네트워크 연결을 제공하거나 기존 철도 네트워크에 대한 안전한 백업 연결 역할을 할 수 있습니다. 3G/4G 멀티 캐리어 셀룰러 및 통합 Wi-Fi ac/b/g/n을 갖춘 유연한 통신 설계가 특징입니다. a/n 액세스 포인트, 시리얼 및 4 포트 이더넷 스위치. 또한 AAR S-9401 및 EN50155를 포함한 온보드 열차 인증을 갖추고 있습니다. 통신 인터페이스에는 이더넷 및 시리얼용 M12 및 안테나 연결 용 TNC 커넥터를 포함한 강화 커넥터가 포함됩니다.

Digi 관리 솔루션은 원격 Digi TransPort 장치의 대규모 설치에서 쉬운 설정, 구성 및 유지보수를 제공합니다. Digi Remote Manager®는 원격 Digi 셀룰러 라우터, 게이트웨이 및 타사 장치를 위한 웹 기반 장치 관리 기능을 제공합니다.

Compare Transportation Routers

	Digi TX54 Rugged and secure cellular router for mission critical industrial and transportation applications, including models for public safety networks	Digi TX64 High performance cellular router with dual redundant communications for complex transit and transportation systems	Digi WR54 Rugged and secure cellular router for mission critical industrial and transportation applications, including FirstNet Ready™ models for public safety networks	Digi WR64 High performance cellular router with dual redundant communications for complex transit and transportation systems	Digi WR44 R All-in-one cellular router with advanced routing and VPN features, designed specifically for use in rugged environments	Digi WR44 RR Rugged, all-in-one cellular router with 3G/4G GPS designed for use on-board rail vehicles
	VIEW PRODUCT	VIEW PRODUCT	VIEW PRODUCT	VIEW PRODUCT	VIEW PRODUCT	VIEW PRODUCT
Ethernet Ports	4	4	4	4	4	4
Industry	Transportation, Traffic Management, Industrial, Energy	Industrial, Energy, Transportation	Transportation, Traffic Management, Industrial, Energy	Industrial, Energy, Transportation	Industrial, Energy, Transportation	Industrial, Energy, Transportation
Wi-Fi	Yes, Dual Wi-Fi modules (opt)	Dual 802.11 ac	802.11 ac; dual Wi-Fi modules in WR54-A112	Dual 802.11 ac	802.11 ac	802.11 ac
Interface Options	RS-232 (DB-9)	RS-232 (DB-9)	RS-232 (DB9)	RS 232 (DB9)	RS 232 (DB9) GPS	RS 232 (DB9) GPS
Power	9 - 36 VDC	6 - 36 VDC	9 - 36 VDC	6 – 36VDC	9-36VDC	9-36VDC
Python Programming	Yes	Yes	Yes	Yes	Yes	Yes
Dual SIM	Yes	Yes	Yes	Yes	Yes	Yes
Multi-carrier (3G/4G LTE)	Yes, Dual Cellular (opt)	Yes, Dual Cellular	Yes, Dual Cellular (opt)	Yes, Dual Cellular	Yes	Yes
	View Specifications	View Specifications	View Specifications	View Specifications	View Specifications	View Specifications

· 제품 사양

SPECIFICATIONS	Digi TransPort WR44 RR
WIRED INTERFACES
CELLULAR**
LTE - NORTH AMERICA/EMEA (M8)	LTE-Advanced Cat 6: 700(B12,B13,B29)/800(B20,B26)/850(B5)/900(B8)/AWS(B4)/1800(B3)/1900(B2,B25)/ 2100(B1)/2300(B30)/2500(B41)/2600(B7) 3G HSPA+: 850/900/AWS/1800/1900/2100 MHz Transfer rate (max): 300 Mbps down, 50 Mbps up Approvals: PTCRB, AT&T, Verizon, Vodafone (pending)
LTE - ANZ/LATAM (L9)	LTE-Advanced Cat 6: 700(B28)/850(B5,B18,B19)/900(B8)/1500(B21)/1800(B3)/1900(B39)/2100(B1)/ 2600(B7,B38)/2300(B40)/2500(B41) 3G HSPA+: 800/850/900/1700/2100 MHz Transfer rate (max): 300 Mbps down, 50 Mbps up
CONNECTOR	(2) 50 Ω TNC (center pin: female)
SIM SLOTS	(2) Mini-SIM (2FF)
SIM SECURITY	SIM slot cover plate
WI-FI**
STANDARD	802.11 ac/a/b/g/n 2.4/5 GHz
MODES	Access point, client and support for multiple SSID
TRANSMIT POWER	16 – 22 dBm, +/- 2 dB
RECEIVE SENSITIVITY	71 – 93 dBm, +/- 2dB
SECURITY	Open or shared key authentication; WEP (64- and 128-bit) encryption; WPA/WPA2 with RADIUS (WPA-enterprise and pre-shared keys)
CONNECTORS	(2) 50 Ω RP-TNC (center pin: male)
GPS**
CHANNELS	50
SENSITIVITY	-163 dB
PROTOCOL	NMEA 0183 V2.3 sentence output; +3.3 VDC active antenna drive; NMEA stream to local serial port or over TCP/IP
NAVIGATION	Galileo ready
AUGMENTATION	SBAS
COLD START	< 27 seconds TTFF (90%)
HORIZONTAL ACCURACY	< 2.5 meters (90%)
VELOCITY ACCURACY	0.1 m/s
CONNECTOR	(1) 50 Ω RP-TNC (center pin: male)
ADDITIONAL FEATURES	Send GPS via UDP/IP, TCP/IP (up to two destinations) or serial; customize and/or send data using Python; GPS status query; time source capable
WIRED INTERFACES
SERIAL
PORTS	(1) 5-pin A-coded M12 female; DCE
STANDARD	RS-232
SIGNAL SUPPORT	TXD, RXD, RTS, CTS, GND
FLOW CONTROL	Software (XON/XOFF), hardware supported
ETHERNET
PORTS	(4) 10/100 Mbps (auto-sensing)
CONNECTOR	Option of 4-pin D-coded M12 female or 8-pin A-coded M12 female
I/O
DIGITAL I/O	Input: 4 - 28 VDC; Output: 28 VDC 50 mA max
CONNECTOR	4-pin A-coded M12 Male (2 pins are used for I/O; the other 2 pins are used for DC power)
MANAGEMENT
REMOTE MANAGEMENT	Digi Remote Manager* (cloud based); SNMP v1/v2c/v3 (user installed/managed)
LOCAL MANAGEMENT	Web Interface (HTTP/HTTPS); CLI (Telnet, SSH, SMS, serial port)
MANAGEMENT/ TROUBLESHOOTING TOOLS	FTP, SFTP, SCP, protocol analyzer with PCAP for Wireshark, event Logging with Syslog and SMTP, NTP/SNTP
MEMORY	128 MB NAND Flash/64 MB DDR2 SDRAM
POWER
INPUT	9 – 36 VDC
CONSUMPTION	15 W max, 8.5 W typical
CONNECTOR	4-pin A-coded M12 male (2 pins are used for power; the other 2 pins are used for I/O)
DC POWER CORD*	4-pin A-coded M12 female to bare wire
PHYSICAL
DIMENSIONS (L X W X H)	29.2 cm x 16.9 cm x 5.2 cm (11.5 in x 6.65 in x 2.05 in)
WEIGHT	2.6 kg (5.7 lbs)
STATUS LEDS	Power, LAN, Wi-Fi, serial, WWAN (link, act, SIM), signal strength
MATERIAL/RATING***	Aluminium alloy / IP54
MOUNTING	(4) mounting slots on the unit’s flange
ENVIRONMENTAL
OPERATING TEMPERATURE	-40° C to 70° C (-40° F to 158° F); reduced cellular performance may occur above +60° C (140° F)
STORAGE TEMPERATURE	-40° C to +85° C (-40° F to 185° F)
RELATIVE HUMIDITY	0% to 95% (non-condensing) @ 25° C (77° F)
ETHERNET ISOLATION	2 kV RMS
SERIAL PORT PROTECTION (ESD)	10 kV
CONFORMAL COATING	Available upon request
APPROVALS
CELLULAR	PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511
SAFETY	UL 60950, CSA 22.2 No. 60950, EN60950
EMISSIONS/IMMUNITY	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
INDUSTRY	EN50155, EN45545-2 (all variants); AAR S-9401 (select variants)

* Optional hardware.
***The enclosure rating is self-declared and has not been formally verified by an independent lab.
**** Product specifications for operating temperature updated on February 5, 2015 and applies to current versions of the product currently in the field.

ENTERPRISE SOFTWARE	DESCRIPTION
PROTOCOLS	HTTP, HTTPS, FTP, SFTP, SSL, SMTP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN	IP filtering, Stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, FIPS 197, Open VPN client and server; PPTP, L2TP; (5) VPN tunnels (upgradable to a maximum of 200); Cryptology: SHA-1, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, SCEP for X.509 certificates; Content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING/FAILOVER	IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, VRRP+TM; automatic failover/ failback to second GSM network/standby APN
OTHER PROTOCOLS	DHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED; Modbus UDP/TCP to serial; X.25 including XOT, SNA/IP, TPAD and PAD; protocol switch; Modbus bridging for connecting diverse field assets
