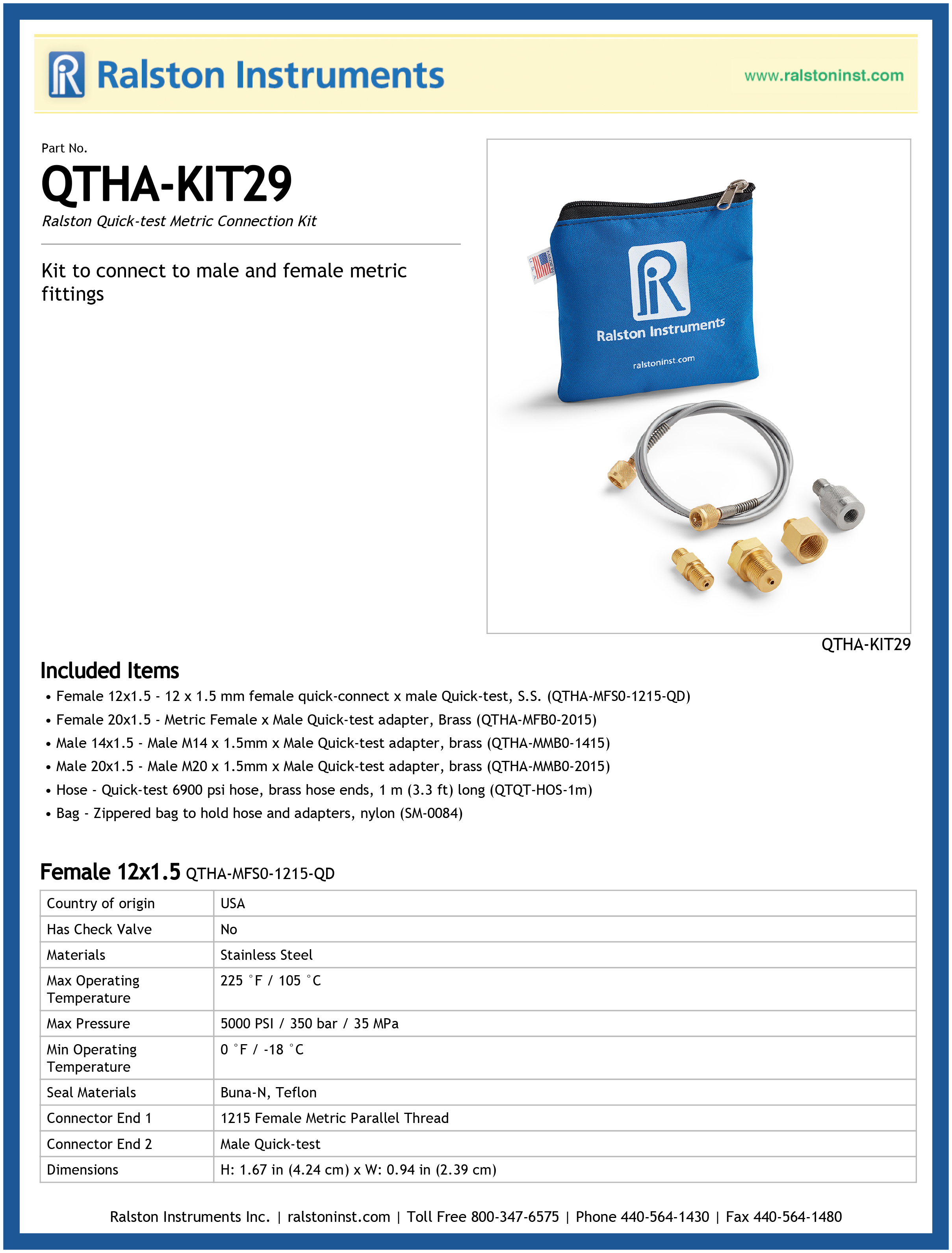

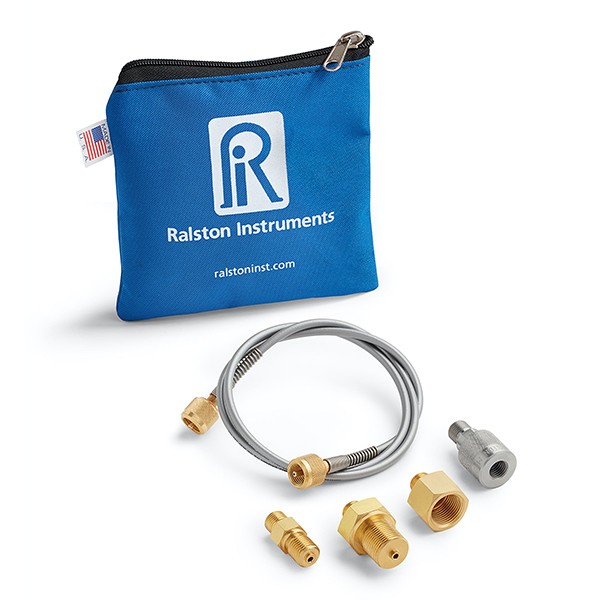

Kit to connect to male and female metric fittings

• Female 12x1.5: 12 x 1.5 mm female quick-connect x male Quick-test, S.S.
• Female 20x1.5: Metric Female x Male Quick-test adapter, Brass
• Male 14x1.5: Male M14 x 1.5mm x Male Quick-test adapter, brass
• Male 20x1.5: Male M20 x 1.5mm x Male Quick-test adapter, brass
• Hose: Quick-test 6900 psi hose, brass hose ends, 1 m (3.3 ft) long
• Bag: Zippered bag to hold hose and adapters, nylon

Specifications

Female 12x1.5 QTHA-MFS0-1215-QD

Length	1.67 in / 43 mm
Width	0.94 in / 24 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1215 Female Metric Parallel Thread
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

Female 20x1.5 QTHA-MFB0-2015

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Brass
Max Pressure	5000 PSI / 350 bar / 35 MPa
Seal Materials	Buna-N
End 1 Connector	Male Quick-test

Male 14x1.5 QTHA-MMB0-1415

Length	1.56 in / 40 mm
Width	0.62 in / 16 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	5/8 In / 16 mm
Wrench Size	16 mm / 5/8 in
End 1 Connector	14 x 1.5 Male Metric
End 2 Connector	Male Quick-test

Male 20x1.5 QTHA-MMB0-2015

Length	1.86 in / 48 mm
Width	1.06 in / 27 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	1.063 In / 28 mm
Wrench Size	27 mm / 1 1/16 in
End 1 Connector	20 x 1.5 Male Metric
End 2 Connector	Male Quick-test

Hose QTQT-HOS-1m

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	1 m / 3.28 ft
Inner Diameter	0.08 In / 3.00 mm
Length	1 m / 3 ft 3 in
Materials	Brass
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, brass
Hose End 2	Female Quick-test, brass

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Included Items

12 x 1.5 mm female quick-connect x male Quick-test, S.S.

Female 12x1.5

QTHA-MFS0-1215-QD

Metric Female x Male Quick-test adapter, Brass

Female 20x1.5

QTHA-MFB0-2015

Male M14 x 1.5mm x Male Quick-test adapter, brass

Male 14x1.5

QTHA-MMB0-1415

Male M20 x 1.5mm x Male Quick-test adapter, brass

Male 20x1.5

QTHA-MMB0-2015

Quick-test 6900 psi hose, brass hose ends, 1 m (3.3 ft) long

Hose

QTQT-HOS-1m

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
