비디오 적외선온도계 요약정보 및 구매

MODEL : R2020

제품문의

위시리스트 0 찜하기

브랜드	REED INSTRUMENTS
시중가격(VAT 포함)	994,400원
판매가격(VAT 포함)	596,200원
포인트	0점
배송정보	유료(주문시 결제) 점포택배 / 평균 7일 이내 도착(토,일,공휴일 제외)

견적 및 전화 문의

제품 정보
관련 제품
제품 자료
구매후기(0)
배송 및 교환

제품 정보

REED R2020 Offers

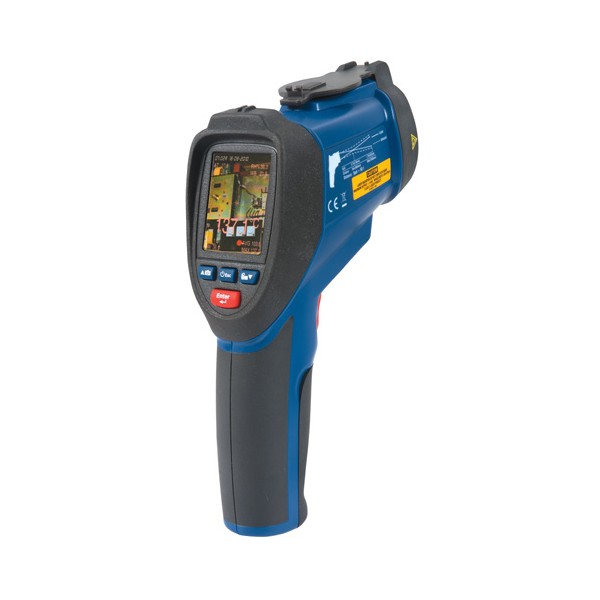

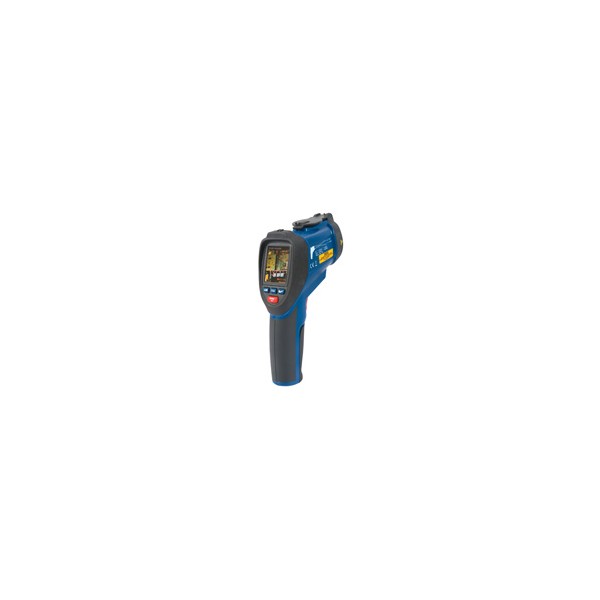

This Video Infrared Thermometer combines the accuracy and convenience of a traditional infrared thermometer with the visual advantage of a digital camera. The R2020 is capable of measuring high temperatures up to 3992°F (2200°C) and includes a number of features including ambient temperature, humidity, dew point and wet bulb temperature measurements.

This instrument can also be mounted to a tripod and setup to continuously monitor an application while graphing live results on-screen.

Features

Dual lasers assist with target area identification
50:1 distance to spot size ratio
Take photos and record video with built-in camera
Datalogging capabilities include on-screen graphing with time and date stamp
Digitally adjustable emissivity
Type K thermocouple input for contact measurement
Ambient air temperature, humidity, dew point and wet bulb temperature measurement
Max, min, avg and differential readings
High and low alarms
Trigger lock feature for continuous monitoring
Export data to PC with included USB cable (no software required)

· 제품 사양

REED R2020 Specifications

IR Temperature
Range	-58 to 3992°F (50 to 2200°C)
Accuracy	-58 to 68°F (-50 to -20°C): ± 6.3°F(3.5°C) 68 to 932°F (20 to 500°C ): ±1% rdg. +1.8°F (1.0°C) 932 to 1832°F (500 to 1000°C): ±1.5% rdg. 1832 to 3992°F (1000 to 2200°C): ±2.0% rdg.
Resolution	0.1°F (0.1°C)
Contact Type K T/C Temperature
Range	-58 to 2498°F (-50 to 1370°C)
Accuracy	-58 to 32°F (-50 to 0°C): ±4. 5°F (2.5°C) 32 to 2498°F (0 to 1370°C): ±0.5% rdg. + 2.7°F (1.5°C)
Resolution	0.1°F (0.1°C)
Ambient Temperature
Range	32 to 122°F (0 to 50°C)
Accuracy	50 to 104°F (10 to 40°C): ±0.9°F (0.5°C) >104°F (40°C): ±1.8°F (1.0°C)
Dewpoint and Wet Bulb Temperature
Range	32 to 122°F (0 to 50°C)
Accuracy	<40°C: ±0.9°F (0.5°C) >40°C: ± 1.8°F (1.0°C)
Relative Humidity
Range	0 to 100% RH
Accuracy	0 to 20%: ±5% 20 to 40%: ±3.5% 40 to 60%: ±3% 60 to 80%: ±3.5% 80 to 100%: ±5%
General Specifications
Optical Resolution (D:S)	50:1
Dual Laser	Yes
Spectral Response	8 to 14µm
Emissivity	0.1 to 1.0 (Adjustable)
Response Time	150ms
Display Size/Type	2.2" TFT Color LCD
Backlit Display	Yes
Display Hold	Yes
High/Low Alarms	Yes (Audible (beep) and visual (on-screen))
Max/Min	Yes
Average and Differential	Yes
Datalogging Capabilities	Yes
F/C Switchable	Yes
Trigger Lock	Yes
Autoshut off	Yes (adjustable 3,15,60mins)
Internal Memory	Yes (72mb), Expandable with micro SD card
Thermocouple Input	Yes
Tripod Mountable	Yes
Laser Class	Class II
Low Battery Indicator	Yes
Power Supply	Li-Ion rechargeable battery
Battery Life	Approx. 4 hours continuous use
Battery Charge Time	Approx. 2 hours
Product Certifications	CE, RoHS
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Humidity Range	10-90%
Dimensions	8.1 x 2.4 x 6.1" (205 x 62 x 155mm)
Weight	14.5 oz (410g)

· 제품 구성

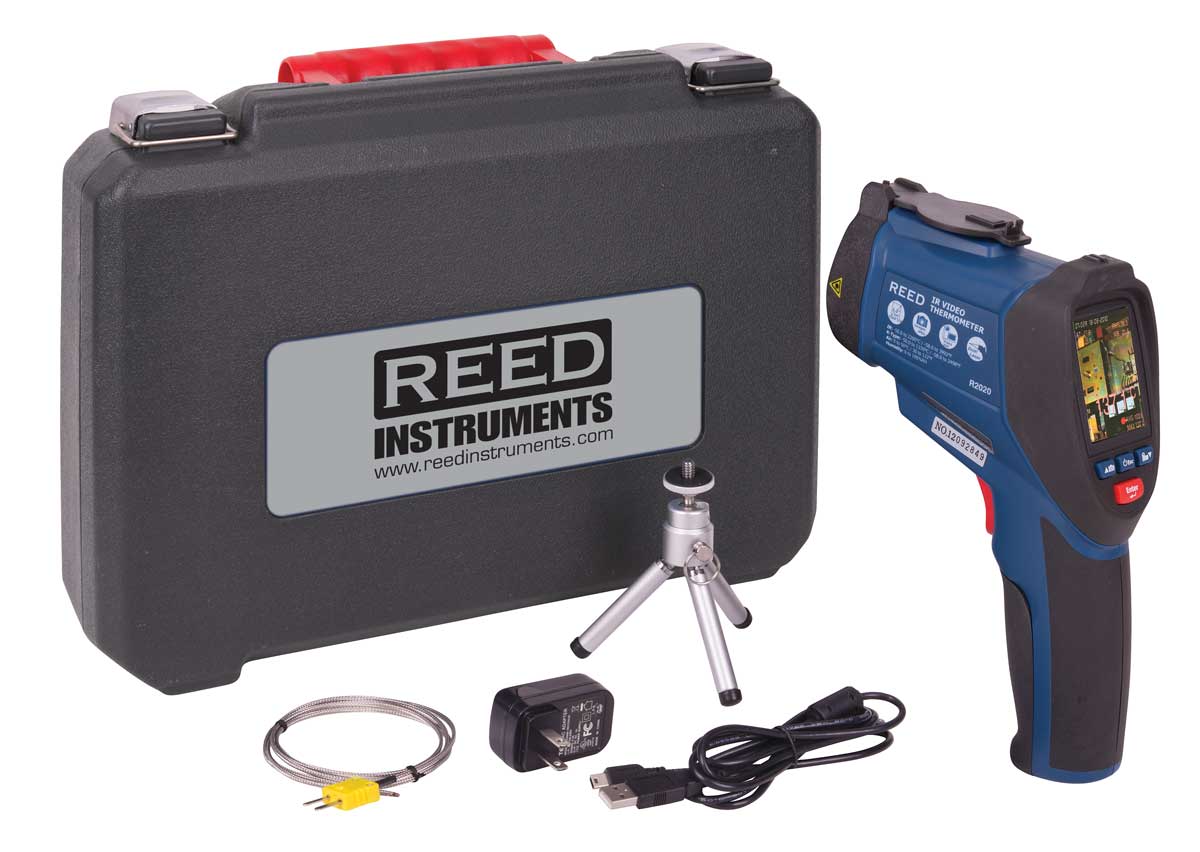

What's included with the REED R2020

Video Infrared Thermometer
Type K Thermocouple Probe
AC Adapter
USB Adapter
Mini-Tripod
Li-ion Rechargeable Battery
Hard Carrying Case
