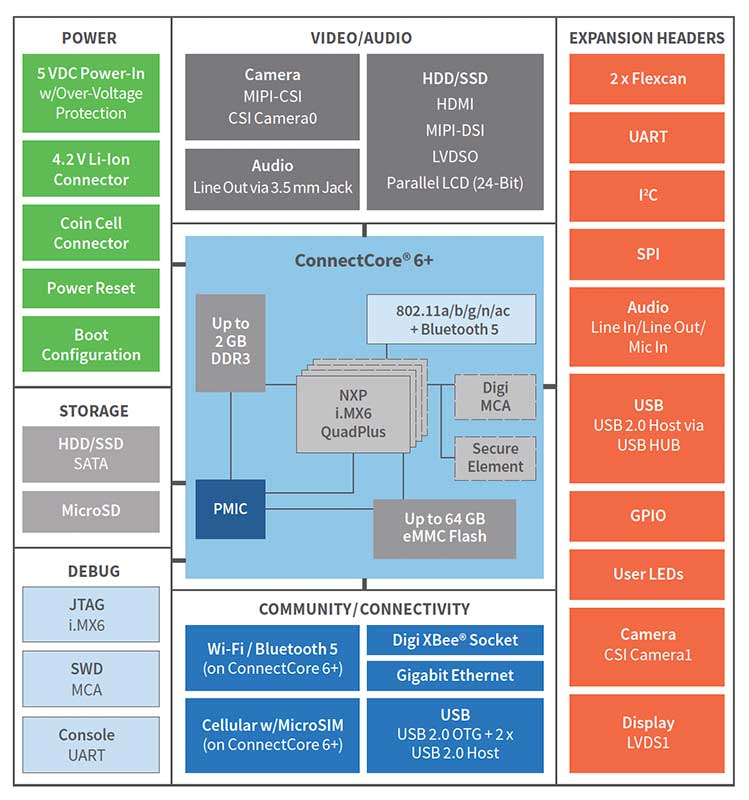

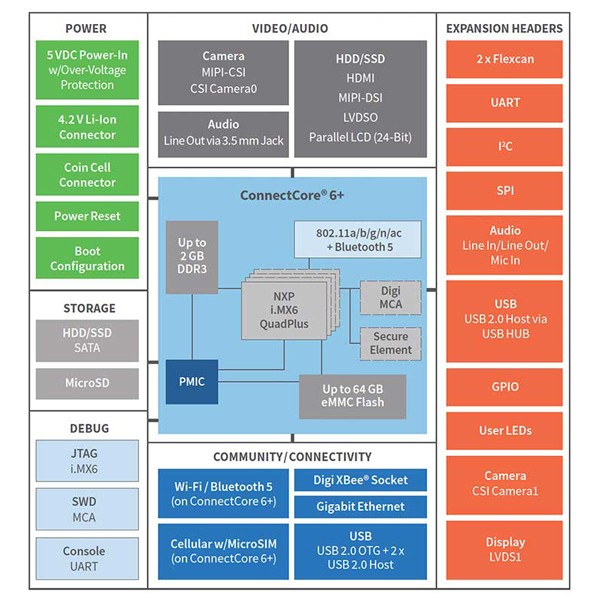

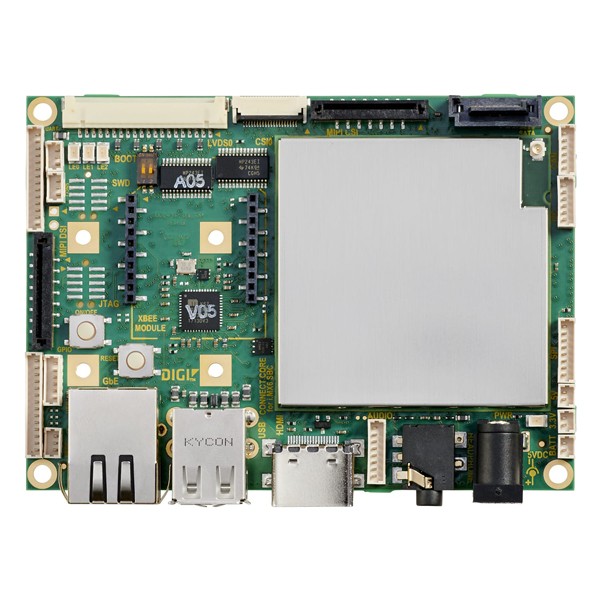

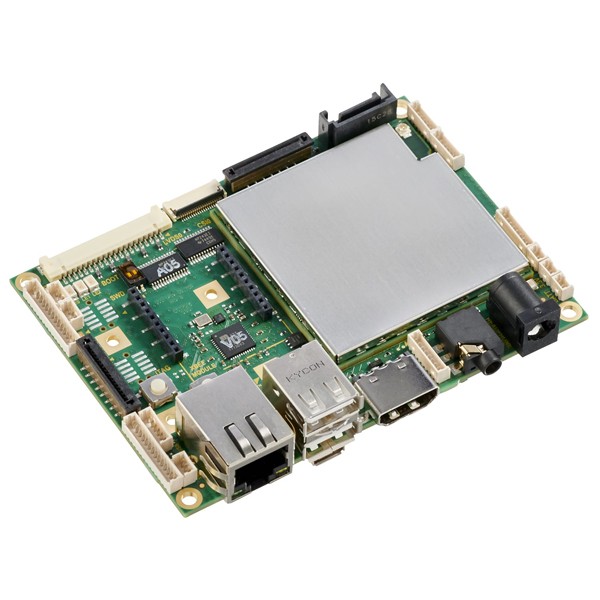

APPLICATION PROCESSOR

NXP i.MX6Plus encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.0 GHz with 1 MB of L2 cache, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity

MEMORY

8 GB eMMC, 2 GB DDR (64-bit)

PMIC

Dialog DA9063

GRAPHICS

LVDS, MIPI display port, MIPI camera port and HDMI v1.4

SECURITY

RNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP)

PERIPHERALS/INTERFACES

MMC 4.4/SD 3.0 x3MMC 4.4/SDXC, UART x5 (5 Mbps), MIPI HSI, S/PDIF Tx/Rx, I2C x3, SPI x5, ESAI, I2S/SSI x3, FlexCAN x2, MLB150 + DTCP, S-ATA and PHY (3 Gbps), USB2 OTG and PHY, USB 2.0 Host and PHY, USB 2.0 HSIC Host x2, PWM, 3.3V GPIO, Keypad, PCIe 2.0 (x1 lane), HDMI and PHY, MIPI DSI, MIPI CSI2, 20-bit CSI, 24-bit RGB, LVDS (x2), RTC, External address/data bus, Watchdog, Timers, JTAG

EXTERNAL BUS

26-bit address / up to 32-bit data (multiplexed and non-multiplexed modes)

DISPLAYS

1 x HDMI (Type A)
2 x LVDS with backlight control and I2C touch interface (HIROSE DF14A-20P-1.25H)
1 x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A)
1 x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI)

CAMERA

1 x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A)
1 x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410)
1 x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI)

USB 2.0

2 x Ux USB OTG (Micro AB); 1 x USB Host (Molex 53047-0610)

AUDIO

1 x Line-In
(3.5 mm stereo jack, CUI SJ1-3515-SMT) 1 x Line-In, 1 x Line-Out, 1 x Mic-In
(Molex 53047-0810) On-board NXP SGTL5000 audio codec

CONSOLE (RS-232)

Yes

SATA 3.0

Yes

MICRO-SIM

Yes

PCI EXPRESS MINI CARD

Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals
Supports mounting of half-size and full-size PCI Express Mini Cards

BOOT CONFIGURATION

eMMC / SD / SATA

DIGI XBEE SOCKET

Yes

WI-FI

802.11a/b/g/n/ac

BLUETOOTH

Bluetooth 5

ON-MODULE MICROCONTROLLER

Digi Microcontroller Assist (MKL14Z32VFT4)

ANTENNA CONNECTORS

1 x U.FL (on SOM)

ETHERNET

Gigabit Ethernet

CAN BUS

2 x FlexCAN (Molex 53047-0610)

GPIO/I²C/SPI/UART

1 x GPIO (8 x i.MX GPIOs + 4 MCA GPIOs - Molex 53047-1410)
1 x I2C (Molex 53047-0310), 1 x SPI (Molex 53047-0610)
3 x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410)

DEBUG

1 x JTAG for i.MX6 (FCI 20021111-00010T4LF)
1 x SWD for MCA (FCI 20021111-00010T4LF)
Headers populated on development units only, Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL)

POWER BUTTON

Power on, power off, sleep, wake-up

RESET BUTTON

Yes

USER LEDS

1 x Red, 1 x Yellow, 1 x Green

COIN CELL CONNECTOR

Yes

SUPPLY VOLTAGE

5 VDC @ 500 mA (typical, depending on use-case)

POWER SUPPLY CONNECTOR

Main power supply via 2mm locking barrel connector

OPERATING TEMPERATURE

-40° C to 85° C (-40° F to 185° F)

STORAGE TEMPERATURE

-50° C to 125° C (-58° F to 257° F)

RELATIVE HUMIDITY

5% to 90% (non-condensing)

RADIO APPROVALS

US, Canada, EU, Australia/New Zealand

EMISSIONS / IMMUNITY / SAFETY

FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B,
VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o),
EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent)

DESIGN VERIFICATION

Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT

MECHANICAL DIMENSIONS

LGA-400, 2 mm pitch, fully shielded (heat-spreading)
