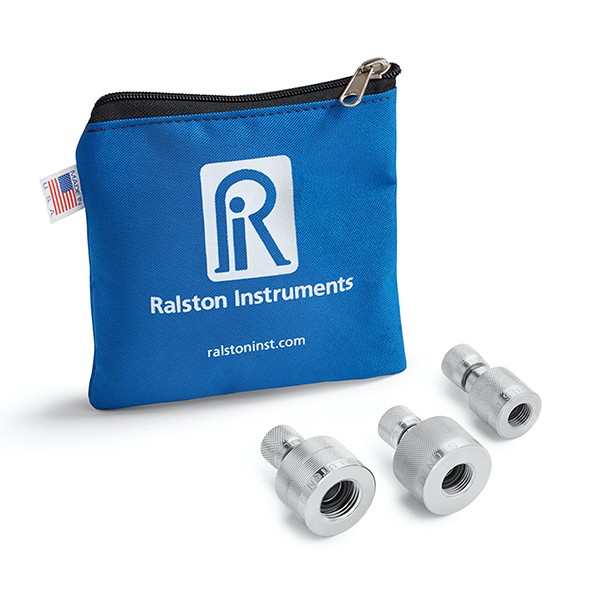

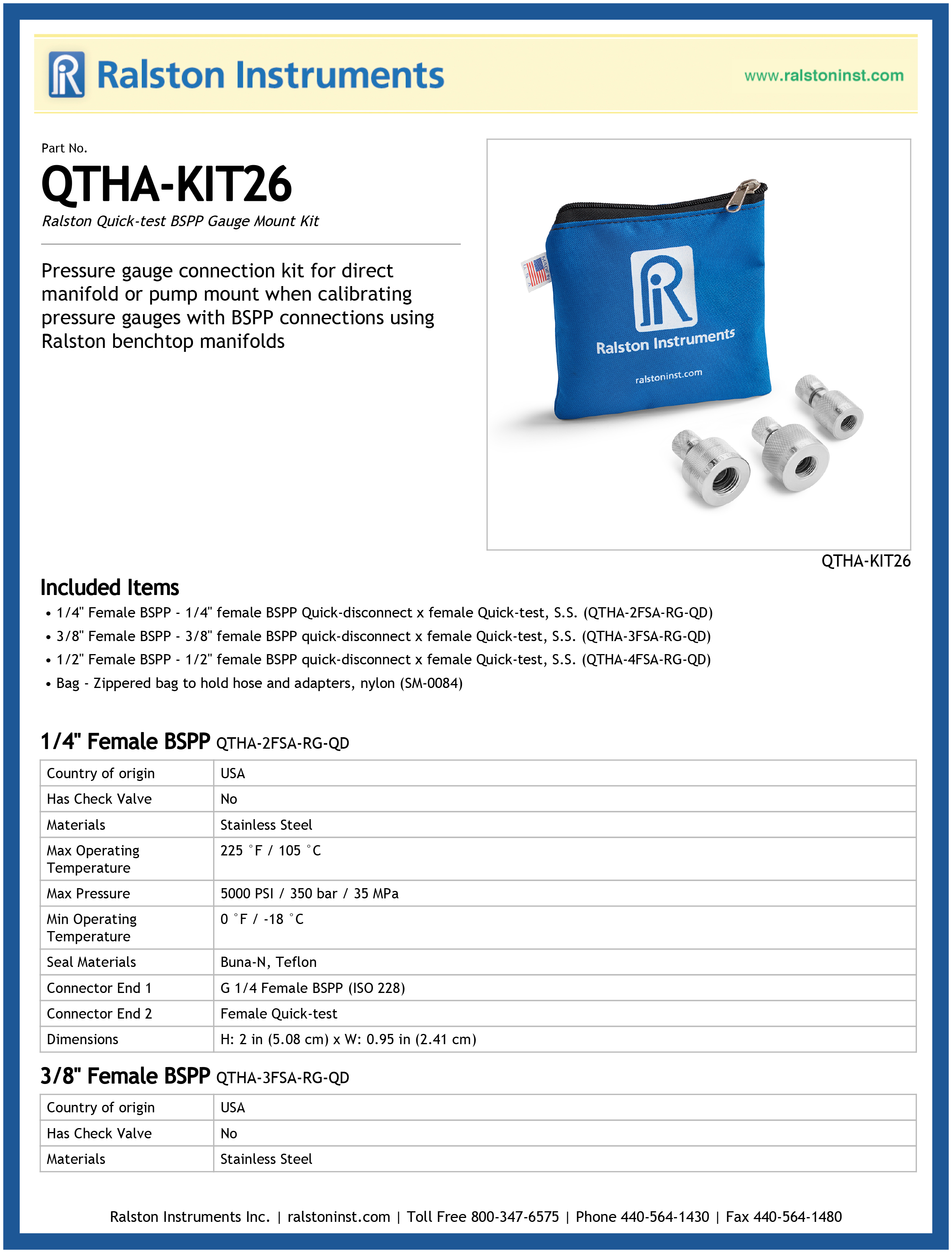

Pressure gauge connection kit for direct manifold or pump mount when calibrating pressure gauges with BSPP connections using Ralston benchtop manifolds

• 1/4" Female BSPP: 1/4" female BSPP Quick-disconnect x female Quick-test, S.S.
• 3/8" Female BSPP: 3/8" female BSPP quick-disconnect x female Quick-test, S.S.
• 1/2" Female BSPP: 1/2" female BSPP quick-disconnect x female Quick-test, S.S.
• Bag: Zippered bag to hold hose and adapters, nylon

Specifications

1/4" Female BSPP QTHA-2FSA-RG-QD

Length	2 in / 51 mm
Width	0.95 in / 25 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 1/4 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 2 Connector	Female Quick-test

3/8" Female BSPP QTHA-3FSA-RG-QD

Length	1.97 in / 51 mm
Width	1.37 in / 35 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 3/8 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 2 Connector	Female Quick-test

1/2" Female BSPP QTHA-4FSA-RG-QD

Length	1.95 in / 50 mm
Width	1.38 in / 36 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 1/2 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 2 Connector	Female Quick-test

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Included Items

1/4" female BSPP Quick-disconnect x female Quick-test, S.S.

1/4" Female BSPP

QTHA-2FSA-RG-QD

3/8" female BSPP quick-disconnect x female Quick-test, S.S.

3/8" Female BSPP

QTHA-3FSA-RG-QD

1/2" female BSPP quick-disconnect x female Quick-test, S.S.

1/2" Female BSPP

QTHA-4FSA-RG-QD

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
