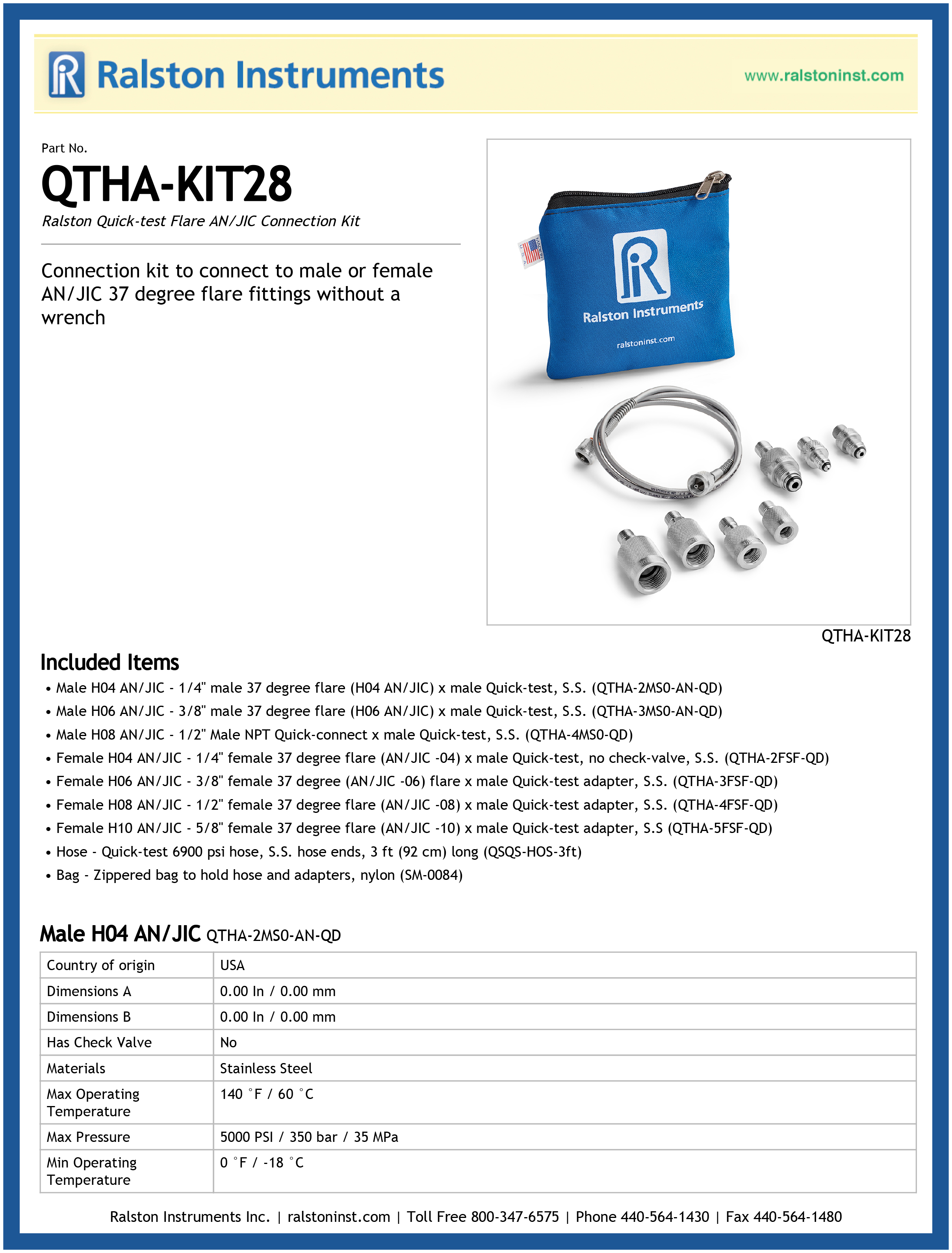

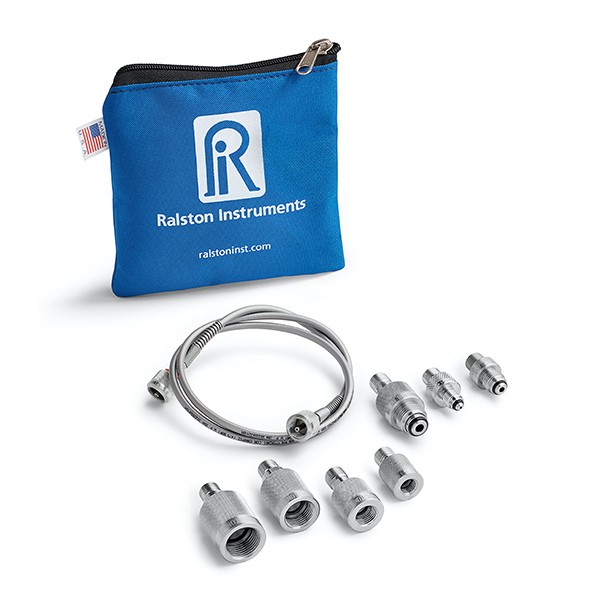

Connection kit to connect to male or female AN/JIC 37 degree flare fittings without a wrench

• Male H04 AN/JIC: 1/4" male 37 degree flare (H04 AN/JIC) x male Quick-test, S.S.
• Male H06 AN/JIC: 3/8" male 37 degree flare (H06 AN/JIC) x male Quick-test, S.S.
• Male H08 AN/JIC: 1/2" Male NPT Quick-connect x male Quick-test, S.S.
• Female H04 AN/JIC: 1/4" female 37 degree flare (AN/JIC -04) x male Quick-test, no check-valve, S.S.
• Female H06 AN/JIC: 3/8" female 37 degree (AN/JIC -06) flare x male Quick-test adapter, S.S.
• Female H08 AN/JIC: 1/2" female 37 degree flare (AN/JIC -08) x male Quick-test adapter, S.S.
• Female H10 AN/JIC: 5/8" female 37 degree flare (AN/JIC -10) x male Quick-test adapter, S.S
• Hose: Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long
• Bag: Zippered bag to hold hose and adapters, nylon

Specifications

Male H04 AN/JIC QTHA-2MS0-AN-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	1/4"(-4) Male AN 37 Degree Flare
End 2 Connector	Male Quick-test

Male H06 AN/JIC QTHA-3MS0-AN-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	3/8"(-6) Male AN 37 Degree Flare
End 2 Connector	Male Quick-test

Male H08 AN/JIC QTHA-4MS0-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/2" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

Female H04 AN/JIC QTHA-2FSF-QD

Length	1.7 in / 44 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Polyurethane, Teflon
End 1 Connector	1/4"(-4) Female 37 degree (AN/JIC) Flare
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

Female H06 AN/JIC QTHA-3FSF-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	170 °F / 77 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Polyurethane, Teflon
End 1 Connector	3/8"(-6) Female 37 degree (AN/JIC) Flare
End 2 Connector	Male Quick-test

Female H08 AN/JIC QTHA-4FSF-QD

Width	170 in / 5.00 m
Country of origin	USA
Dimensions A	0 In / 0.00 mm
Materials	Stainless Steel
Max Pressure	5000 PSI / 350 bar / 35 MPa
Seal Materials	Buna-N, Polyurethane, Teflon
End 1 Connector	1/2"(-8) Female 37 degree (AN/JIC) Flare
End 2 Connector	Male Quick-test

Female H10 AN/JIC QTHA-5FSF-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	130 °F / 54 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Polyurethane, Teflon
End 1 Connector	5/8"(10) Female 37 degree (AN/JIC) Flare
End 2 Connector	Male Quick-test

Hose QSQS-HOS-3ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	3ft / 0.91 m
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Included Items

1/4" male 37 degree flare (H04 AN/JIC) x male Quick-test, S.S.

Male H04 AN/JIC

QTHA-2MS0-AN-QD

3/8" male 37 degree flare (H06 AN/JIC) x male Quick-test, S.S.

Male H06 AN/JIC

QTHA-3MS0-AN-QD

1/2" Male NPT Quick-connect x male Quick-test, S.S.

Male H08 AN/JIC

QTHA-4MS0-QD

1/4" female 37 degree flare (AN/JIC -04) x male Quick-test, no check-valve, S.S.

Female H04 AN/JIC

QTHA-2FSF-QD

3/8" female 37 degree (AN/JIC -06) flare x male Quick-test adapter, S.S.

Female H06 AN/JIC

QTHA-3FSF-QD

1/2" female 37 degree flare (AN/JIC -08) x male Quick-test adapter, S.S.

Female H08 AN/JIC

QTHA-4FSF-QD

5/8" female 37 degree flare (AN/JIC -10) x male Quick-test adapter, S.S

Female H10 AN/JIC

QTHA-5FSF-QD

Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long

Hose

QSQS-HOS-3ft

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
