FEATURE

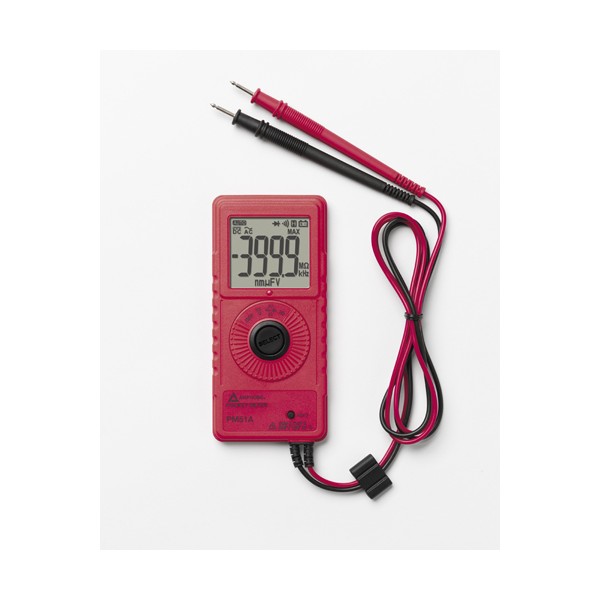

PM51A

PM55A

Voltage AC/DC

400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V

6.000, 60.00, 600.0 V

Resistance

400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO

600.0 O, 6.000 kO, 60.00 kO, 600.0 kO, 6.000 MO

AC/DC Current

–

400.0 µA, 2000 µA

Frequency

400 Hz, 4 kHz, 40 kHz, 400 kHz, and 1 MHz

10.00 Hz → 30.00 kHz

Capacitance

500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF

100.0 nF, 1000 nF, 10.00 µF, 100.0 µF, 2000 µF

VolTect™ Non-Contact Voltage Detection

–

•

Specifications

DC Voltage range:

400.0 mV , Accuracy: ± (1.0 %+2 dgt)

DC Voltage range:

4.000 V, 40.00 V, 400.0 V, Accuracy: ± (2.0 %+2 dgt)

DC Voltage range:

600 V, Accuracy: ± (2.5 %+4 dgt)

DC Voltage NMRR:

> 50 dB @ 50 Hz/60 Hz

DC Voltage CMRR:

> 120 dB @ dc, 50 Hz/60 Hz; Rs= 1 kO

Input impedance:

10 MO, 30 pF nominal; (1000 MO for 400.0 mV range)

AC Voltage range 50 Hz - 60 Hz:

4.000 V, 40.00 V, 400.0 V, Accuracy: ± (2.0 %+5 dgt)

AC Voltage range 60 Hz - 500 Hz:

4.000 V, 40.00 V, 400.0 V, Accuracy: ± (3.0 %+5 dgt)

AC Voltage range 50 Hz - 500 Hz:

600 V, Accuracy: ± (3.5 %+5 dgt)

Input impedance:

10 MO, 30 pF nominal

AC Voltage CMRR:

> 60 dB @ dc to 60 Hz, Rs=1 kO

Capacitance range*:

500.0 nF, 5.000 µF, 50.00 µF,500.0 µF, 3000 µF3

Capacitance accuracy*:

± (3.5 %+6 dgt4)

Resistance range:

400.0 O, Accuracy: ± (1.5 %+6 dgt)

Resistance range:

4.000 KO, 40.00 KO, 400.0 KO, Accuracy:± (1.0 %+4 dgt)

Resistance range:

4.000 MO, Accuracy: ± (1.5 %+4 dgt)

Resistance range:

40.00 MO, Accuracy: ± (2.5 %+4 dgt)

Open circuit voltage:

0.4 V dc typical

Frequency range**:

400 Hz, 4 kHz, 40 kHz, 400 kHz, 1 MHz,Accuracy:± (0.5 %+4 dgt)

Sensitivity (V-peak):

5 Hz - 100 kHz, Accuracy:> 1.3 Vp

Sensitivity (V-peak):

100 kHz - 500 kHz, Accuracy:> 2.2 Vp

Sensitivity (V-peak):

500 kHz - 1 MHz, Accuracy:> 4.2 Vp

Audible continuity tester open circuit voltage:

0.4 V dc typical

Audible threshold :

65 O ±55 O
