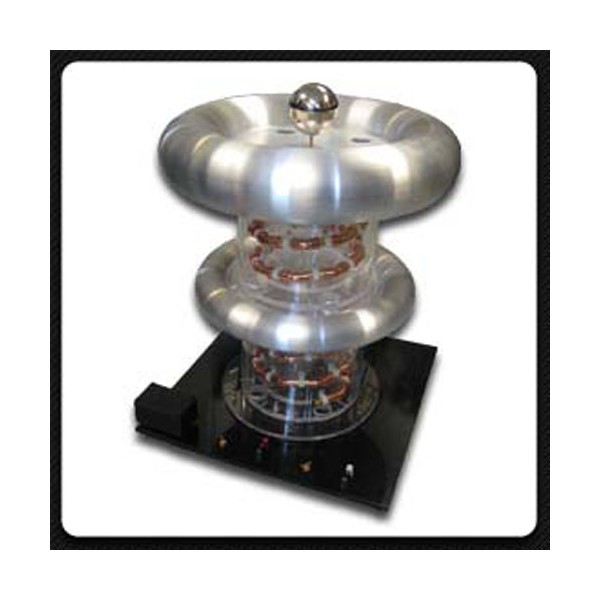

HVS High Voltage Standard

- 높은 안정성

- 높은 정확도

- 독특한 구조

- 모듈화 디자인

The high voltage resistors are enclosed in an acrylic tube, protecting them from dust and contamination. A low voltage fan exhausts heat out the top of the divider.

​The base HVS unit includes one 50 megohm stack rated up to 50 kV dc (35 kV ac rms), one 10 K resistance standard and a top toroid. The additional HVS-A adder unit includes one 50 megohm stack and an intermediate toroid. Adder units are easily stacked to increase the voltage range.

Assemblies of one HVS base unit plus additional HVS-A Adder Units may be ordered as HVS-100, HVS-150, etc.

The HVS toroids, high voltage sections, base and resistance standard disassemble easily for safe transport. The HVS does not need a special transport container.

ISO17025 accredited calibration is included up to 150 kV dc and up to 100 kV ac (60 Hz rms).

Specification

Physical

- HVS: 60 x 60 x 35cm (24 x 24 x 14 in), 14kg (30 lbs)

- HVS-A: 50 x 50 x 30cm (20 x 20 x 12 in), 8kg (18 lbs)
