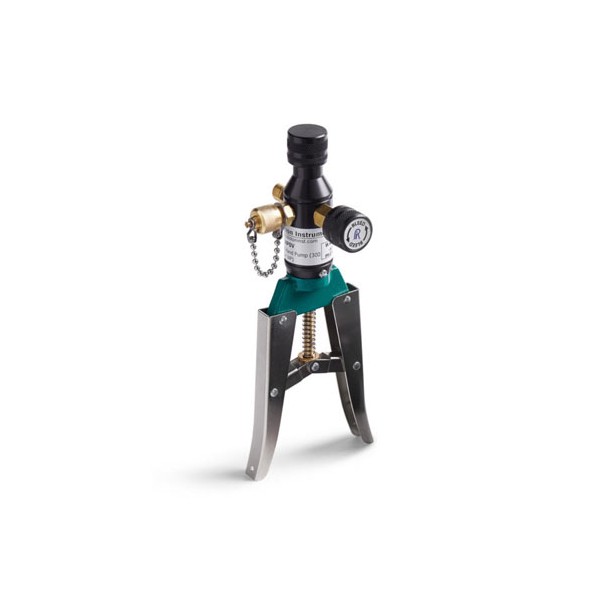

압력 펌프 300 psi/2.07 MPa > 압력펌프 (휴대형)
.jpg)
[1](3).jpg)
상품 이미지 전체보기
제품 정보
외부 압력 교정기를 기준으로 해서 압력 송신기, 스위치 또는 게이지에서 공압 현장 교정을 수행합니다.
* 압력 교정은 전기나 질소없이 수행할 수 있습니다.
* 2개의 출구 포트가 있어 사용자가 테스트할 장치와 외부 압력 기준 교정기 둘 다에 펌프를 부착할 수 있으므로 “T”조인트가 필요 없게 되어 제거되었습니다.
* 미세 조정 피스톤으로 사용자가 가장 중요한 포인트 압력 교정을 위해 정확한 압력을 얻을 수 있습니다.
* 추기밸브가 부드러운 자리에 장착되어 압력을 정밀하게 배출합니다.
* 저용량 퀵-테스트 호스, 게이지 어댑터 및 프로세스 연결부는 배관 밀봉제(thread sealant)나 렌치 없이 펌프에 부착할 수 있습니다.
* 모든 금속 구조물은 견고하여 온도와 압력의 안정성을 향상시킵니다.
* Made in U.S.A.
Perform pneumatic field calibrations on pressure transmitters, switches or gauges using an external pressure calibrator as the reference
•Pressure calibration can be performed without electricity or nitrogen
•Two outlet ports allow the user to attach pump to both device under test and external pressure reference thus eliminating a tee
•Fine adjustment piston allows the user to achieve an exact pressure for cardinal point pressure calibrations
•Precisely vent pressure with soft seated bleed valve
•Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
•Rugged, all metal construction improves temperature and pressure stability
•Made in U.S.A.
· 제품 사양
| Burst Pressure | 27,000 psi / 1,862 bar / 185 MPa |
|---|---|
| Color | Silver |
| Fine Adjustment Resolution | 0.010 PSI |
| Fluid Media | Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water |
| Has Check Valve | No |
| Inner Diameter | 0.08 in / 0.20 cm |
| Length | 3 ft / 91.44 cm |
| Materials | Aluminum Anodized Aluminum Brass Plated Steel Stainless Steel |
| Max Pressure | 300 psi / 21 bar / 2.07 MPa |
| Max Temperature | 130 °F / 54 °C |
| Media Compatibility | 1: Inert Gas 2: Natural Gas 6: Petroleum Based Oil 7: Water Air Inert Gas Natural Gas Petroleum Based Oil Water |
| Min Temperature | -0 °F / -18 °C |
| Minimum Bend Radius | 1.00 in / 2.54 cm |
| Outer Diameter | 0.20 in / 0.51 cm |
| Outlet Port | Male Quick-test Male Quick-test with cap and chain |
| Pressure Media | Air |
| Pressure Reference | Digital pressure gauge, 100 PSIG Pressure Digital pressure gauge, 300 PSIG Pressure None Pressure FieldLab, 300 psi / 20 bar / 2 MPa Pressure FieldLab, 500 psi / 35 bar / 3.5 MPa |
| Process Connection | 1/4" Male NPT |
| Reference Connection | 1/2" Female BSPP (G1/2) 1/4" Female NPT None |
| Seal Materials | Buna-N Delrin Teflon |
| Type | QT |
| Wrench Size | 3/4, 1-1/16 In 9/16 In 9/16, 3/4 In |
| Wrench Size | 15 mm 15, 19 mm 19, 27 mm |
| Certifications | ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50 °C) Certified to CSA Standard C22.2 No. 61010-1 Complies with Electromagnetic Compatibility Directive 2014/30/EU Complies with Low Voltage Directive 2014/35/EU Complies with Pressure Equipment Directive 2014/68/EU Conforms to UL Standard No. 61010-1 IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50 °C) North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C) |
| Charging | AC Power (Australia, China, Europe, North America, UK adapters included) DC Auto power (Optional) |
| Datalogging | 2 million data points 2 million points |
| Ingress Protection | IP67 (1 meter water submersion for 30 minutes) |
| LCD Display | 3.5 in / 90mm Color TFT LCD Display |
| Max Storage Temperature | 167 °F / 75 °C |
| Max Vacuum | 0.00 inHg / 0.00 mmHg 30 inHg / 760 mmHg |
| Measurement Type | Gauge Pressure |
| Min Storage Temperature | -20 °F / -29 °C |
| Mounting Holes | 3 x M5 Inserts (10 mm deep) |
| Pressure Measurement Uncertainty | +/- 0.02% of Full Scale (0-20% of Full Scale) +/- 0.1% of Reading (20-100% of Full Scale) +/- 0.25% of Full Scale (Vacuum) |
| Relative Humidity | 0% to 70% (35 to 50°C) 0% to 90% (-10 to 35°C) |
| USB Connection | USB (Type B) |
| Wetted Materials | 316 Stainless Steel |
| Battery Type | AA Lithium Ion, 4.8 Ah Capacity |
| FieldLab Model | FLP1-GL |
| Hose 1 | Quick-test Hose, Brass ends, 3ft / 0.9m long Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long |
| Hose 2 | Quick-test Hose, Stainless Steel ends, 2ft / 0.6m long |
| Max Process Media Temperature | 122 °F / 50 °C |
| Min Process Media Temperature | 14 °F / -10 °C |
| USB Cable | 2 meter (shielded) |
| Accuracy | ±0.25% of Full Scale ±1 least significant digit |
| Battery Count | 2 |
| Battery Life | 2500 Hours |
| Dial Size | 2.88 in / 7.32 cm |
| Pressure Units | PSIG |
| Length | 3 ft 3 in / 100.00 cm |
· 제품 구성
Pneumatic Scissor Hand Pumps
|
Model |
Max Pressure |
Reference Connection |
Pressure Reference |
Process Connection |
|
AP0V-0000 |
300 psi / 21 bar / 2.07 MPa |
None |
None |
1/4" Male NPT |
|
APGV-0000 |
300 psi / 21 bar / 2.07 MPa |
1/4" Female NPT |
None |
1/4" Male NPT |
Pneumatic Scissor Hand Pumps with FieldLab
|
Model |
Max Pressure |
Reference Connection |
Pressure Reference |
Process Connection |
|
AP0V-100PSIG-FL |
300 psi / 21 bar / 2.07 MPa |
None |
Pressure FieldLab, 500 psi / 35 bar / 3.5 MPa |
1/4" Male NPT |
|
AP0V-300PSIG-FL |
300 psi / 21 bar / 2.07 MPa |
None |
Pressure FieldLab, 300 psi / 20 bar / 2 MPa |
1/4" Male NPT |
Pneumatic Scissor Hand Pumps with Digital Gauge
|
Model |
Max Pressure |
Reference Connection |
Pressure Reference |
Process Connection |
|
APGV-100PSIG-D |
300 psi / 21 bar / 2.07 MPa |
1/4" Female NPT |
Digital pressure gauge, 100 PSIG Pressure |
1/4" Male NPT |
|
APGV-300PSIG-D |
300 psi / 21 bar / 2.07 MPa |
1/4" Female NPT |
Digital pressure gauge, 300 PSIG Pressure |
1/4" Male NPT |
