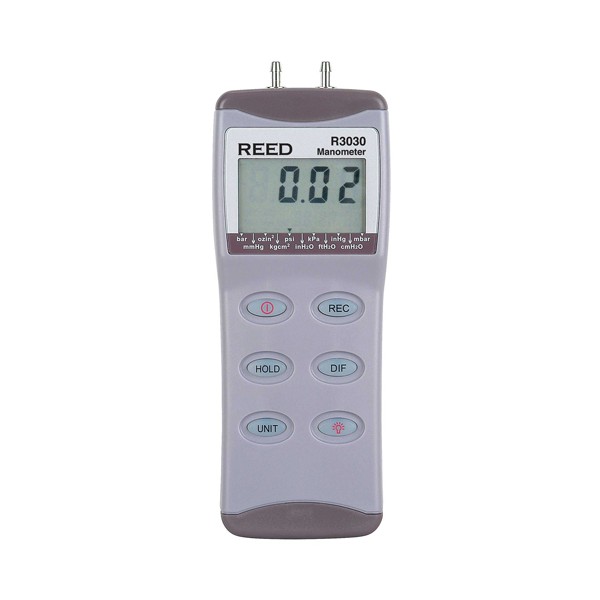

REED R3030 Offers

This digital manometer provides accurate measurements in 11 different units of measure and is capable of taking gauge and differential pressure. The R3030 features a large backlit LCD display and internal memory to capture maximum and minimim measurements.

Features

• Measures gauge and differential pressure up to 30psi
• 11 selectable units of measure: psi, inH₂O, bar, mbar, kPa, inHg, mmHg, ozin², ftH₂O, cmH₂O, kgcm²
• Displays pressure and real-time clock simultaneously
• Large, easy-to-read backlit LCD display
• Internal memory saves Max and Min measurements
• Data hold function
• Low battery indicator and auto shut off

Ideal Applications for the REED R3030

• Troubleshoot heating ventilation and air conditioning (HVAC) systems and a variety of low-pressure pneumatic or gas systems
• Pressure transmitter calibration for process instrumentation
• Detect blockages in filters, condensers and chillers (water filter steam power plant)
• Testing of pressure switches and other relief devices
• Calibrating pressure transmitters
• Calibrating pressure recorders

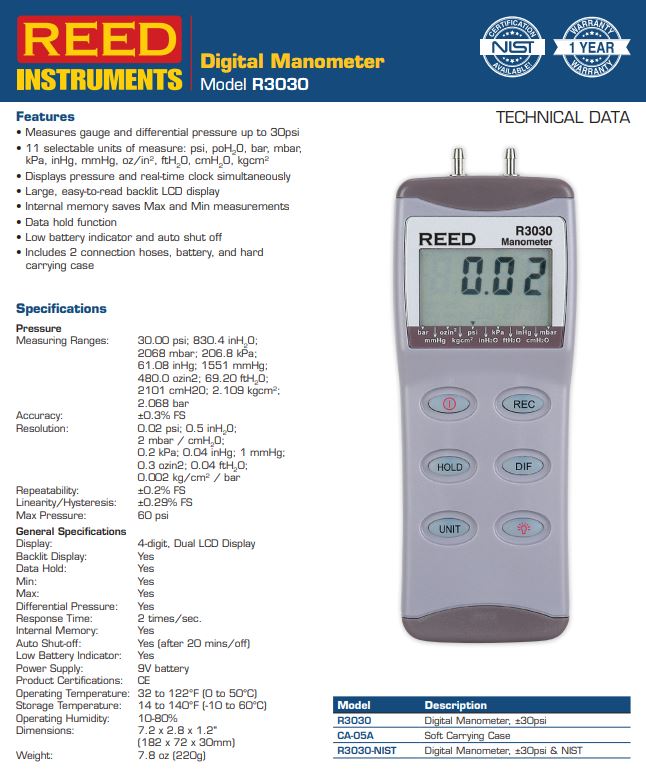

REED R3030 Specifications

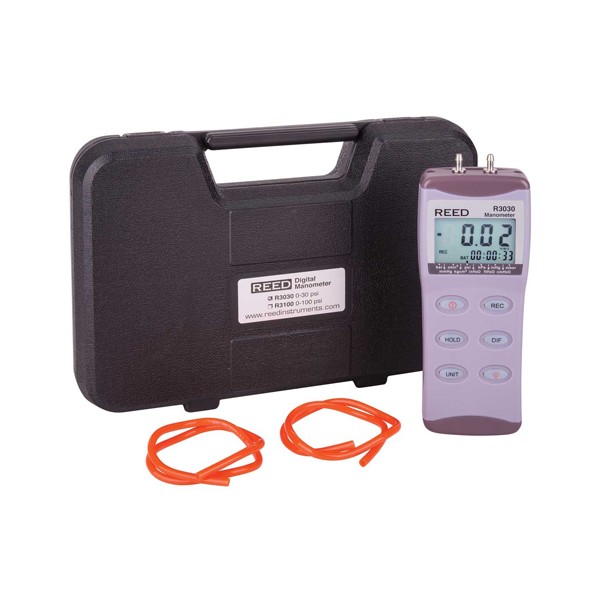

What's included with the REED R3030

• Digital Manometer
• 2 Connection Hoses
• Battery
• Hard Carrying Case
