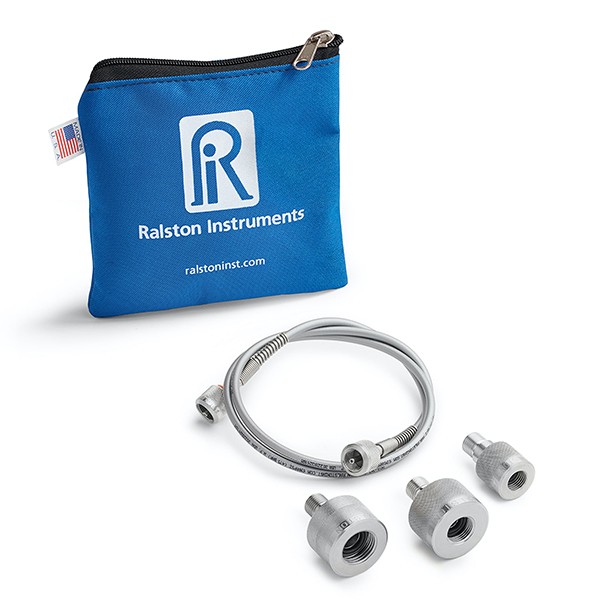

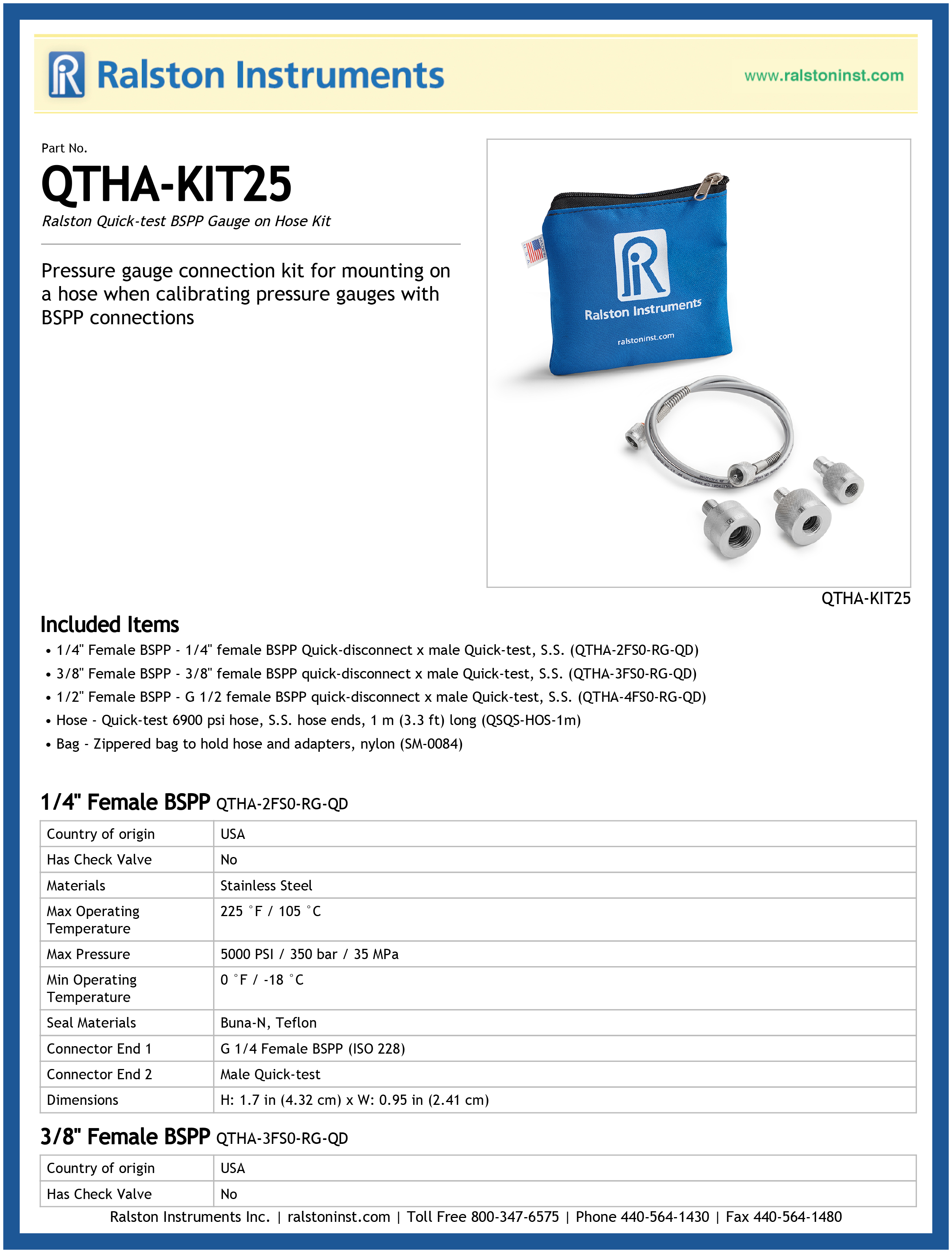

Pressure gauge connection kit for mounting on a hose when calibrating pressure gauges with BSPP connections

• 1/4" Female BSPP: 1/4" female BSPP Quick-disconnect x male Quick-test, S.S.
• 3/8" Female BSPP: 3/8" female BSPP quick-disconnect x male Quick-test, S.S.
• 1/2" Female BSPP: G 1/2 female BSPP quick-disconnect x male Quick-test, S.S.
• Hose: Quick-test 6900 psi hose, S.S. hose ends, 1 m (3.3 ft) long
• Bag: Zippered bag to hold hose and adapters, nylon

Specifications

1/4" Female BSPP QTHA-2FS0-RG-QD

Length	1.7 in / 44 mm
Width	0.95 in / 25 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 1/4 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

3/8" Female BSPP QTHA-3FS0-RG-QD

Length	1.74 in / 45 mm
Width	1.37 in / 35 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 3/8 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/2" Female BSPP QTHA-4FS0-RG-QD

Length	1.72 in / 44 mm
Width	1.38 in / 36 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	G 1/2 Female BSPP (ISO 228)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

Hose QSQS-HOS-1m

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	1 m / 3.28 ft
Inner Diameter	0.08 In / 3.00 mm
Length	1 m / 3 ft 3 in
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Included Items

1/4" female BSPP Quick-disconnect x male Quick-test, S.S.

1/4" Female BSPP

QTHA-2FS0-RG-QD

3/8" female BSPP quick-disconnect x male Quick-test, S.S.

3/8" Female BSPP

QTHA-3FS0-RG-QD

G 1/2 female BSPP quick-disconnect x male Quick-test, S.S.

1/2" Female BSPP

QTHA-4FS0-RG-QD

Quick-test 6900 psi hose, S.S. hose ends, 1 m (3.3 ft) long

Hose

QSQS-HOS-1m

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
