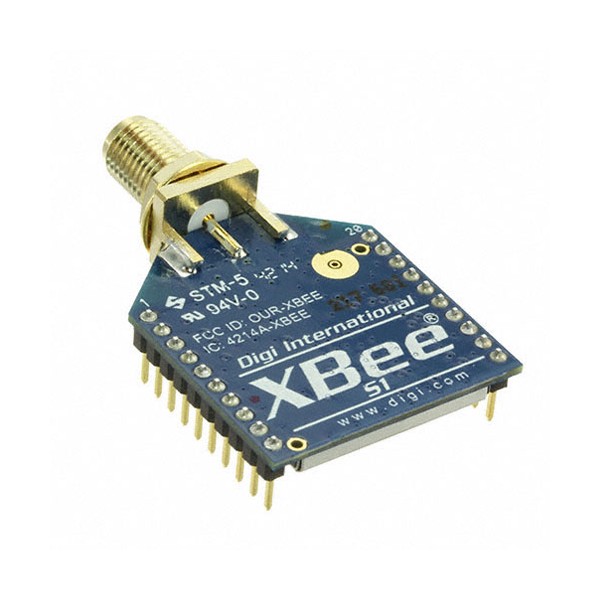

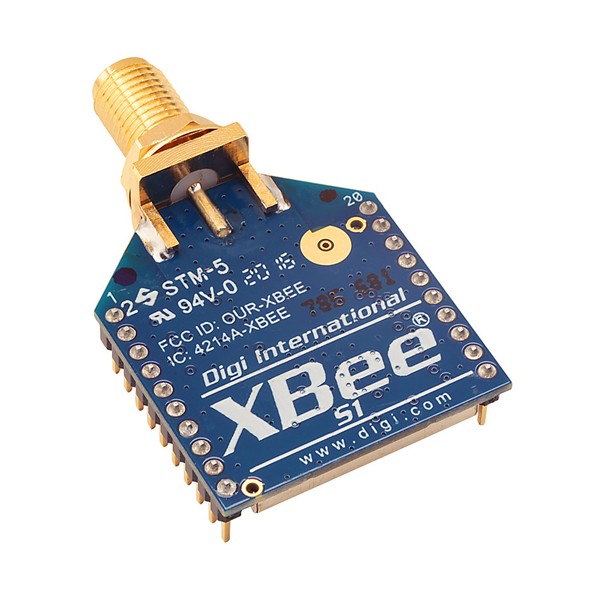

XBee® DigiMesh™ RPSMA 안테나 > XBee DigiMesh

Platform

XBee®
DigiMesh® 2.4

XBee-PRO®
DigiMesh® 2.4

XBee-PRO®
DigiMesh® 2.4 (Int'l)

Performance

RF Data Rate

250 Kbps

Indoor/Urban Range

100 ft (30 m)

300 ft (90 m)

200 ft (60 m)

Outdoor/RF Line-of-Sight Range

300 ft (90 m)

1 mile (1.6 km)

2500 ft (750 m)

Transmit Power

1 mW (+0 dBm)

63 mW (+18 dBm)

10 mW (+10 dBm)

Receiver Sensitivity (1% PER)

-92 dBm

-100 dBm

Features

Serial Data Interface

3.3V CMOS serial UART

Configuration Method

AT & API

Frequency Band

2.4 GHz ISM

Interference Immunity

DSSS (Direct Sequence Spread Spectrum)

Serial Data Rate

Up to 115.2 Kbps

ADC Inputs

(6) 10-bit ADC inputs

Digital I/O

13

Antenna Options

Chip, Wire whip, U.FL, RPSMA

Networking & Security

Encryption

128-bit AES

Reliable Packet Delivery

Retries/Acknowledgments

Addressing Options

PAN ID, Channel, 64-bit address

Channels

16

12

Power Requirements

Supply Voltage

2.8 – 3.4VDC

Transmit Current

45 mA

250 mA (Wire, Chip, U.FL),
340 mA (RPSMA)

150 mA (Wire, Chip, U.FL),
180 mA (RPSMA)

Receive Current

50 mA

55 mA

Power-Down Current

<50 uA

Regulatory Approvals

FCC (USA)

Yes

IC (Canada)

Yes

ETSI (Europe)

Yes

Yes (Max Tx 10 mW)

Yes

C-TICK (Australia)

Yes

Telec (Japan)

Yes

No

Yes
